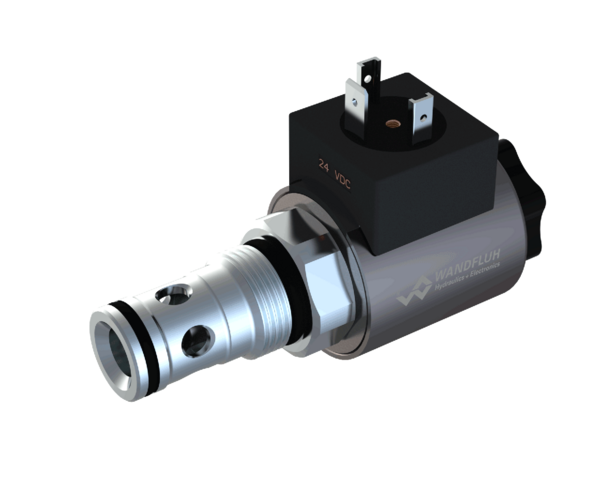

Solenoid poppet valve cartridge pilot operated SVSPM22

Poppet valves M22x1,5

Pilot operated 2/2-way solenoid poppet valve in screw-in cartridge construction for cavity according to ISO 7789. The CB execution is closed in the energised position, the BC execution in the de-energised position. In this, the main spool closes practically leakage-free by means of the applied pressure. In the opposite flow direction, the valve opens after reaching the opening pressure.

Switching valves Solenoid poppet valve cartridge pilot operated SVSPM22

Solenoid operated poppet valve cartridge

  • solenoid operated
  • pilot operated
  • normally open and normally closed
  • 2/2-way
  • Qmax = 80 l/min
  • p max = 350 bar

Application

Wandfluh solenoid operated poppet valve cartridges are used where tight closing functions are essential like leakage-free load holding, clamping or gripping. For machining the cartridge cavity in steel and aluminum blocks, cavity tools are available (hire or purchase). Please refer to the data sheets in register 2.13.
