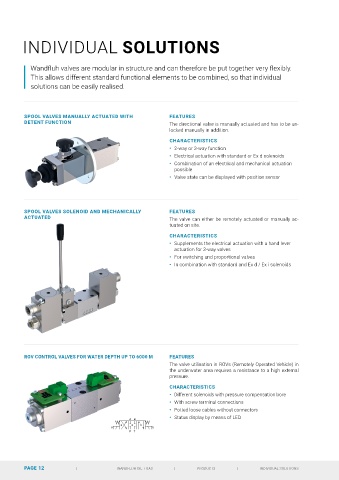

INDIVIDUAL SOLUTIONS

Wandfluh valves are modular in structure and can therefore be put together very flexibly.
This allows different standard functional elements to be combined, so that individual
solutions can be easily realised.

SPOOL VALVES MANUALLY ACTUATED WITH FEATURES
DETENT FUNCTION The directional valve is manually actuated and has to be un-
locked manually in addition.
CHARACTERISTICS
• 2-way or 3-way function
• Electrical actuation with standard or Ex d solenoids
• Combination of an electrical and mechanical actuation
possible
• Valve state can be displayed with position sensor

SPOOL VALVES SOLENOID AND MECHANICALLY FEATURES
ACTUATED The valve can either be remotely actuated or manually ac-
tuated on site.
CHARACTERISTICS
• Supplements the electrical actuation with a hand lever
actuation for 3-way valves
• For switching and proportional valves
• In combination with standard and Ex d / Ex i solenoids

ROV CONTROL VALVES FOR WATER DEPTH UP TO 6000 M FEATURES
The valve utilisation in ROVs (Remotely Operated Vehicle) in
the underwater area requires a resistance to a high external
pressure.
CHARACTERISTICS
• Different solenoids with pressure compensation bore
• With screw terminal connections
• Potted loose cables without connectors
CB2
AC1
ACB • Status display by means of LED
A B A B A B
a o b a b a b
a b a b a b
P T P T P T
