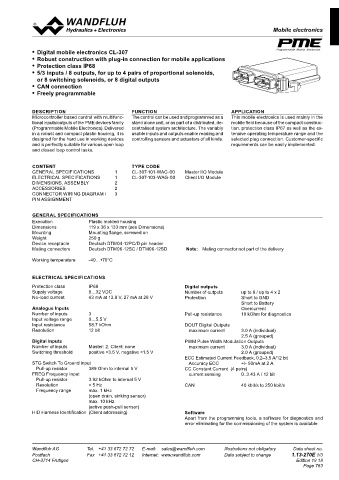

Mobile electronics
Mobile electronics I/O Module CL-307
D D
75
(2 : 1)
• Digital mobile electronics CL-307 7.4 Programmable Mobile Electronics
133
• Robust construction with plug-in connection for mobile applications 143

• Protection class IP68
• 5/3 inputs / 8 outputs, for up to 4 pairs of proportional solenoids,
or 8 switching solenoids, or 8 digital outputs Gezeichnet 28.01.2016 BEH FA E
E
Geprüft
04.05.2016
01
BEH
TK

• CAN connection Rev. 30.03.2016 Name Änderungsnr. Stecker richtiggestellt Freigegeben M 1:1 04.05.2016 0.175 kg
Änderungsbeschrieb
Datum
Serie freigegeben
Ersetzt durch:
Gewicht
Mobilelektronik I/O Modul
• Freely programmable 30 CL-307 Ersatz für: 0192109 Format
Dok.-Nr.
A2
Dokument darf ohne schriftliche Einwilligung weder kopiert, Art.-Nr. Revision
verwertet noch an Dritte weitergegeben werden. DB 1.13-270 01
Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.
1 2 3 4 5 C:\00_Wandfluh\Verkauf\Dokumentation\Reg1.13\0192109 Blatt 1 von 1
DESCRIPTION FUNCTION APPLICATION
Microcontroller based control with multifunc- The control can be used and programmed as a This mobile electronics is used mainly in the
tional inputs/outputs of the PME devices family stand alone unit, or as part of a distributed, de- mobile field because of the compact construc-
(Programmable Mobile Electronics). Delivered centralised system architecture. The variably tion, protection class IP67 as well as the ex-
in a robust and compact plastic housing, it is usable inputs and outputs enable reading and tensive operating temperature range and the
designed for the hard use in working devices controlling sensors and actuators of all kinds. selected plug connection. Customer-specific
and is perfectly suitable for various open loop requirements can be easily implemented.
and closed loop control tasks.
CONTENT TYPE CODE
GENERAL SPECIFICATIONS 1 CL-307-101-WAG-00 Master I/O Module
ELECTRICAL SPECIFICATIONS 1 CL-307-103-WAG-00 Client I/O Module
DIMENSIONS, ASSEMBLY 2
ACCESSORIES 2
CONNECTOR WIRING DIAGRAM / 3
PIN ASSIGNMENT
GENERAL SPECIFICATIONS
Execution Plastic molded housing
Dimensions 119 x 36 x 133 mm (see Dimensions)
Mounting Mounting flange, screwed on
Weight 250 g
Device receptacle Deutsch DTM04-12PC/D pin header
Mating connectors Deutsch DTM06-12SC / DTM06-12SD Note: Mating connector not part of the delivery
Working temperature -40…+70°C
ELECTRICAL SPECIFICATIONS
Protection class IP68 Digital outputs
Supply voltage 8…32 VDC Number of outputs up to 8 / up to 4 x 2
No-load current 43 mA at 13.8 V, 27 mA at 28 V Protection Short to GND
Short to Battery
Analogue Inputs Overcurrent
Number of inputs 3 Pull-up resistance 10 kOhm for diagnostics
Input voltage range 0…5.5 V
Input resistance 58.7 kOhm DOUT Digital Outputs
Resolution 12 bit maximum current 3.0 A (individual)
2.5 A (grouped)
Digital Inputs PWM Pulse Width Modulation Outputs
Number of inputs Master: 2, Client: none maximum current 3.0 A (individual)
Switching threshold positive >3.5 V, negative <1.5 V 2.0 A (grouped)
ECC Estimated Current Feedback, 0.2–3.5 A/12 bit
STG Switch To Ground input Accuracy ECC +/- 50mA at 2 A
Pull-up resistor 389 Ohm to internal 5 V CC Constant Current (4 pairs)
FREQ Frequency Input current sensing 0..3.43 A / 12 bit
Pull-up resistor 3.92 kOhm to internal 5 V
Resolution < 5 Hz CAN 40 kbit/s to 250 kbit/s
Frequency range max. 1 kHz
(open drain, sinking sensor)
max. 10 kHz
(active push-pull sensor)
HID Harness Identification (Client addressing) Software
Apart from the programming tools, a software for diagnostics and
error eliminating for the commissioning of the system is available.
