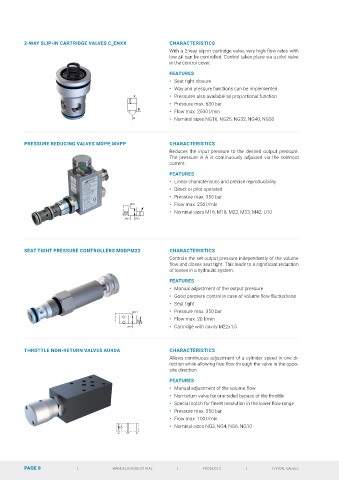

2-WAY SLIP-IN CARTRIDGE VALVES C_ENXX CHARACTERISTICS
With a 2-way slip-in cartridge valve, very high flow rates with

low ∆P can be controlled. Control takes place via a pilot valve
in the control cover.
FEATURES
• Seat tight closure
• Way and pressure functions can be implemented
• Pressures also available as proportional function
• Pressure max. 630 bar
• Flow max. 2500 l/min
• Nominal sizes NG16, NG25, NG32, NG40, NG50

PRESSURE REDUCING VALVES MDPP, MVPP CHARACTERISTICS
Reduces the input pressure to the desired output pressure.
The pressure in A is continuously adjusted via the solenoid
current.
FEATURES
• Linear characteristics and precise reproducibility
• Direct or pilot operated
• Pressure max. 350 bar
• Flow max. 250 l/min
(A) 1
• Nominal sizes M16, M18, M22, M33, M42, U10
(P) 2 (T) 3

SEAT TIGHT PRESSURE CONTROLLERS MSDPM22 CHARACTERISTICS
Controls the set output pressure independently of the volume
flow and closes seat tight. This leads to a significant reduction

of losses in a hydraulic system.
FEATURES
• Manual adjustment of the output pressure
• Good pressure control in case of volume fl ow fl uctuations
• Seat tight
• Pressure max. 350 bar
(A) 1
• Flow max. 20 l/min
(P) 2 • Cartridge with cavity M22x1,5

THROTTLE NON-RETURN VALVES AURDA CHARACTERISTICS
Allows continuous adjustment of a cylinder speed in one di-

rection while allowing free flow through the valve in the oppo-
site direction.
FEATURES

• Manual adjustment of the volume flow
• Non-return valve for one-sided bypass of the throttle

• Special notch for finest resolution in the lower flow range
• Pressure max. 350 bar
• Flow max. 100 l/min
• Nominal sizes NG3, NG4, NG6, NG10
A PT B
