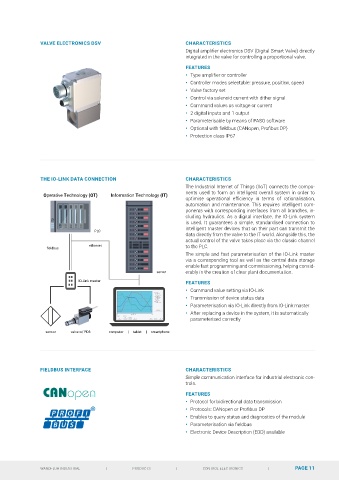

VALVE ELECTRONICS DSV CHARACTERISTICS

Digital amplifier electronics DSV (Digital Smart Valve) directly
integrated in the valve for controlling a proportional valve.
FEATURES

• Type amplifier or controller
• Controller modes selectable: pressure, position, speed
• Valve factory set
• Control via solenoid current with dither signal
• Command values as voltage or current
• 2 digital inputs and 1 output
• Parameterisable by means of PASO software

• Optional with fieldbus (CANopen, Profibus DP)

• Protection class IP67

THE IO-LINK DATA CONNECTION CHARACTERISTICS
The Industrial Internet of Things (IIoT) connects the compo-
nents used to form an intelligent overall system in order to
Operative Technology (OT) Information Technology (IT)

optimise operational efficiency in terms of rationalisation,
automation and maintenance. This requires intelligent com-
ponents with corresponding interfaces from all branches, in-
cluding hydraulics. As a digital interface, the IO-Link system
is used. It guarantees a simple, standardised connection to
intelligent master devices that on their part can transmit the
PLC
data directly from the valve to the IT world. Alongside this, the
actual control of the valve takes place via the classic channel
ethernet to the PLC.
fieldbus

The simple and fast parameterisation of the IO-Link master
via a corresponding tool as well as the central data storage
enable fast programming and commissioning, helping consid-
server erably in the creation of clear plant documentation.
IO-Link master FEATURES
• Command value setting via IO-Link
• Transmission of device status data
• Parameterisation via IO-Link directly from IO-Link master
• After replacing a device in the system, it is automatically
parameterised correctly

sensor valve w/ PD3 computer | tablet | smartphone

FIELDBUS INTERFACE CHARACTERISTICS
Simple communication interface for industrial electronic con-
trols.

FEATURES
• Protocol for bidirectional data transmission

• Protocols: CANopen or Profibus DP
• Enables to query status and diagnostics of the module
• Parameterisation via fieldbus

• Electronic Device Description (EDD) available
