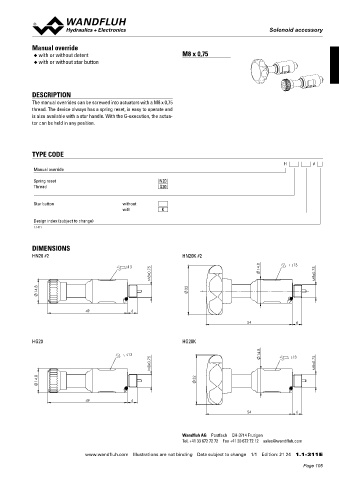

Solenoid accessories
                                                                                                Solenoid accessory


            Manual override
             ◆  with or without detent                           M8 x 0,75
             ◆  with or without star button



            DESCRIPTION
            The manual overrides can be screwed into actuators with a M8 x 0,75
            thread. The device always has a spring reset, is easy to operate and
            is also available with a star handle. With the G-execution, the actua-


            tor can be held in any position.



            TYPE CODE
                                                                                                     H          #
             Manual override

             Spring reset                                N20
             Thread                                      G20

             Star button                    without
                                            with          K

             Design index (subject to change)
             1.1-311



            DIMENSIONS
            HN20 #2                                              HN20K #2

                                             s13                                            14.8        s13
                                                       M8x0.75                                                   M8x0.75

              14.8                                                 32



                                49              6

                                                                                        54                6

            HG20                                                 HG20K

                                             s13                                            14.8       s13
                                                       M8x0.75                                                   M8x0.75


              14.8                                                    32


                                49              6

                                                                                        54                6



                                                                 Wandfluh AG  Postfach  CH-3714 Frutigen
                                                                 Tel. +41 33 672 72 72  Fax +41 33 672 72 12  sales@wandfluh.com

                               www.wandfluh.com  Illustrations are not binding  Data subject to change  1/1  Edition: 21 24  1.1-311 E
