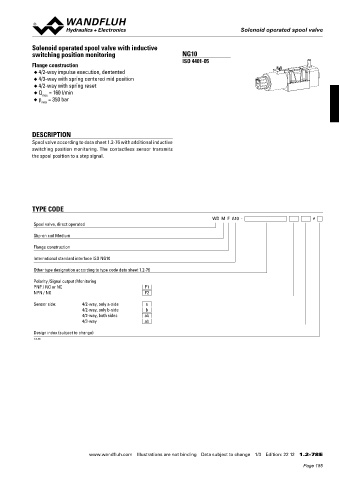

Solenoid operated spool valve
                                                                                     Solenoid operated spool valve


            Solenoid operated spool valve with inductive
            switching position monitoring                        NG10
                                                                 ISO 4401-05
            Flange construction
             ◆  4/2-way impulse execution, dentented
             ◆  4/3-way with spring centered mid position
             ◆  4/2-way with spring reset
             ◆  Q  = 160 l/min
                max
             ◆  p  = 350 bar
                max




            DESCRIPTION
            Spool valve according to data sheet 1.2-76 with additional inductive
            switching position monitoring.  The  contactless  sensor  transmits
            the spool position to a step signal.









            TYPE CODE
                                                                            WD  M  F  A10  -                    #
             Spool valve, direct operated

             Slip-on coil Medium

             Flange construction
             International standard interface ISO NG10
             Other type designation according to type code data sheet 1.2-76

             Polarity /Signal output /Monitoring
             PNP / NO or NC                         P1
             NPN / NO                               P2
             Sensor side:     4/2-way, only a-side   a
                              4/2-way, only b-side   b
                              4/2-way, both sides   ab
                              4/3-way               ab
             Design index (subject to change)
             1.2-78























                                www.wandfluh.com  Illustrations are not binding  Data subject to change  1/3  Edition: 22 12  1.2-78 E
