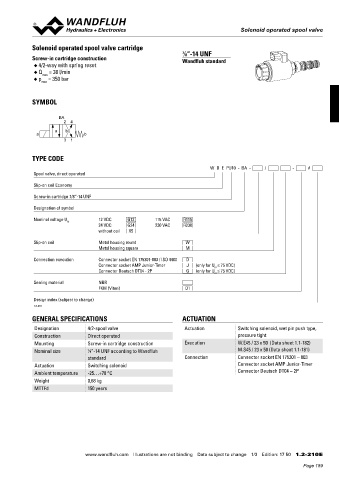

Solenoid operated spool valve
                                                                                     Solenoid operated spool valve


            Solenoid operated spool valve cartridge
                                                                 7 ⁄8 “-14 UNF
            Screw-in cartridge construction                      Wandfluh standard
             ◆  4/2-way with spring reset
             ◆  Q  = 38 l/min
                max
             ◆  p  = 350 bar
                max

            SYMBOL

                      BA
                       2  4
                    a   b
              a                b
                       3  1


            TYPE CODE
                                                                           W  D  E  PU10  -  BA  -     /        -     #
             Spool valve, direct operated

             Slip-on coil Economy
             Screw-in cartridge 7/8“-14 UNF

             Designation of symbol

             Nominal voltage U      12 VDC    G12       115 VAC   R115
                         N
                                    24 VDC    G24       230 VAC   R230
                                    without coil   X5
             Slip-on coil           Metal housing round           W
                                    Metal housing square          M
             Connection execution   Connector socket EN 175301-803 / ISO 4400   D
                                    Connector socket AMP Junior-Timer   J   (only for U  ≤ 75 VDC)
                                                                            N
                                    Connector Deutsch DT04 - 2P    G   (only for U  ≤ 75 VDC)
                                                                            N
             Sealing material       NBR
                                    FKM (Viton)                   D1
             Design index (subject to change)
             1.2-210
            GENERAL SPECIFICATIONS                               ACTUATION
             Designation        4/2-spool valve                   Actuation          Switching solenoid, wet pin push type,
             Construction       Direct operated                                      pressure tight
             Mounting           Screw-in cartridge construction   Execution          W.E45 / 23 x 50  (Data sheet 1.1-182)
             Nominal size       7 ⁄8 “-14 UNF according to Wandfluh                  M.S45 / 23 x 50 (Data sheet 1.1-181)
                                standard                          Connection         Connector socket EN 175301 – 803
             Actuation          Switching solenoid                                   Connector socket AMP Junior-Timer
             Ambient temperature  -25…+70 °C                                         Connector Deutsch DT04 – 2P
             Weight             0,68 kg
             MTTFd              150 years













                               www.wandfluh.com  Illustrations are not binding  Data subject to change  1/3  Edition: 17 50  1.2-210 E
