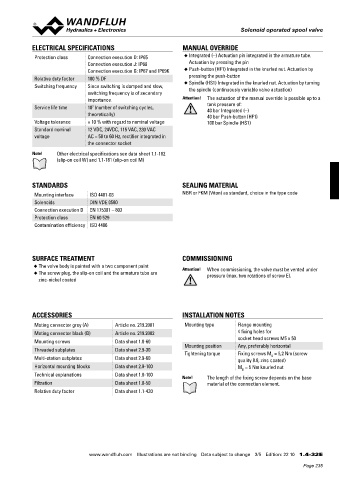

Page 235 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

ELECTRICAL SPECIFICATIONS MANUAL OVERRIDE
Protection class Connection execution D: IP65 ◆ Integrated (–) Actuation pin integrated in the armature tube.
Connection execution J: IP66 Actuation by pressing the pin
Connection execution G: IP67 and IP69K ◆ Push-button (HF1) Integrated in the knurled nut. Actuation by
Relative duty factor 100 % DF pressing the push-button
Switching frequency Since switching is damped and slow, ◆ Spindle (HS1) Integrated in the knurled nut. Actuation by turning
the spindle (continuously variable valve actuation)
switching frequency is of secondary
importance. Attention! The actuation of the manual override is possible up to a
7
Service life time 10 (number of switching cycles, tank pressure of:
40 bar Integrated (–)
theoretically) 40 bar Push-button (HF1)
Voltage tolerance ± 10 % with regard to nominal voltage 100 bar Spindle (HS1)
Standard nominal 12 VDC, 24VDC, 115 VAC, 230 VAC
voltage AC = 50 to 60 Hz, rectifier integrated in
the connector socket
Note! Other electrical specifications see data sheet 1.1-182
(slip-on coil W) and 1.1-181 (slip-on coil M)

STANDARDS SEALING MATERIAL
Mounting interface ISO 4401-03 NBR or FKM (Viton) as standard, choice in the type code
Solenoids DIN VDE 0580
Connection execution D EN 175301 – 803
Protection class EN 60 529
Contamination efficiency ISO 4406

SURFACE TREATMENT COMMISSIONING
◆ The valve body is painted with a two component paint Attention! When commissioning, the valve must be vented under
◆ The screw plug, the slip-on coil and the armature tube are pressure (max. two rotations of screw E).
zinc-nickel coated

ACCESSORIES INSTALLATION NOTES
Mating connector grey (A) Article no. 219.2001 Mounting type Flange mounting
Mating connector black (B) Article no. 219.2002 4 fixing holes for
socket head screws M5 x 50
Mounting screws Data sheet 1.0-60
Mounting position Any, preferably horizontal
Threaded subplates Data sheet 2.9-30 Tightening torque Fixing screws M = 5,2 Nm (screw
D
Multi-station subplates Data sheet 2.9-60 quality 8.8, zinc coated)
Horizontal mounting blocks Data sheet 2.9-100 M = 5 Nm knurled nut
D
Technical explanations Data sheet 1.0-100
Note! The length of the fixing screw depends on the base
Filtration Data sheet 1.0-50 material of the connection element.
Relative duty factor Data sheet 1.1-430

www.wandfluh.com Illustrations are not binding Data subject to change 3/5 Edition: 22 10 1.4-32 E
