Solenoid
                                                                                                   Solenoids                                                                                                                    Solenoids

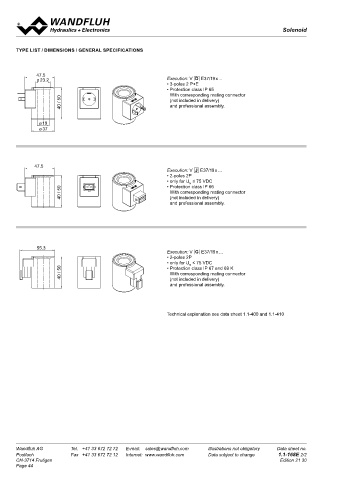

       TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS                                                                             Solenoid coil W.E37/16 x 40
                                                                                                                                   according to DIN VDE 0580
                                                                                                                                   Protection class IP 65 / 67 / 69K

              47.5
              Ø 23.2                                        Execution: V  D  E37/19 x ...
                                                            • 3-poles 2 P+E
                                                            • Protection class IP 65
                                                            • • With corresponding mating connector                                DESCRIPTION                        FUNCTION                           APPLICATION
              47.5    40 / 50                               • • (not included in delivery)                                         The  slip-on solenoid  coil  W.E37/16 x 40  is   With the combination of an armature tube the   The solenoid coils are mainly utilised in hy-
              Ø 23.2                                        • • and professional assembly.                                         available in three different connection versions   function of a switching solenoid or of a propor-  draulic applications.
                                                                                                                                   (see type code). The construction corresponds   tional solenoid results.
                                                                                                                                   to the DIN VDE 0580-Norm. The housing is
               Ø19                                                                                                                 made of steel (nickel-/chromium coated), the
               Ø 37   40 / 50
              47.5                                                                                                                 connector socket is made of plastic material.
              Ø 23.2
             47.5
               Ø19
               Ø 37   40 / 50
             47.5     40 / 50                               Execution: V  J  E37/19 x …                                            TYPE CODE                                                                   W    E37 / 16  x  40  -   #

                                                            • 2-poles 2P                                                           Metal housing, round
               Ø19                                          • only for U  ≤ 75 VDC
                                                                    N
               Ø 37                                         • Protection class IP 66                                               Connection execution
              55.3    40 / 50                               • • With corresponding mating connector                                Connector socket EN 175301-803 / ISO 4400           D
             47.5                                           • • (not included in delivery)                                         Connector socket AMP Junior-Timer                   J
                                                            • • and professional assembly.                                         Connector Deutsch DT04-2P                           G
                                                                                                                                   Coil execution
              55.3    40 / 50                                                                                                      Internal coil diameter 16 mm
                      40 / 50                                                                                                      Coil length 40 mm

                                                                                                                                   Nominal voltage U      12 VDC     G12
                      40 / 50                                                                                                                             24 VDC     G24
                                                                                                                                                N
              55.3                                                                                                                 Design-Index (Subject to change)
                                                            Execution: V  G  E37/19 x …
                                                            • 2-poles 2P
                                                            • only for U  ≤ 75 VDC
                                                                    N
                      40 / 50                               • Protection class IP 67 and 69 K
                                                            • • With corresponding mating connector
                                                            • • (not included in delivery)
                                                            • • and professional assembly.                                         SPECIFICATIONS
                                                                                                                                   Coil winding                                                               12 VDC  24 VDC
                                                                                                                                   insulation class    H (180 °C)                       Nominal power    (W)   20,5   20,5
                                                                                                                                   Relative duty factor   100% DF / ED                  (Switching function)
                                                                                                                                                       combined with armature tube and valve  Limiting power   (W)   14   14
                                                            Technical explanation see data sheet 1.1-400 and 1.1-410               Ambient temperature   -20...+50 °C                   (Proportional function)
                                                                                                                                   Corrosion protection   Salt spray test according to  Limiting current (50 °C) (A)   1,16   0,58
                                                                                                                                                                                        (Proportional function)
                                                                                                                                                       EN ISO 9227: ≥ 200 h             Nominal resistance   (Ω)   7   28
                                                                                                                                                                                        Number of windings   (–)   710   1 420
                                                                                                                                                                                        Weight of solenoid coil (kg)   0,22   0,22

                                                                                                                                                                                        SAFE OPERATION
                                                                                                                                                                                        Caution: Because of the danger of over-heating the solenoid coil must
                                                                                                                                                                                        only be commissioned together with an armature tube as well as with
                                                                                                                                                                                        a valve.















       Wandfluh AG        Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.     Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
       Postfach           Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-168E 2/2              Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-169E 1/2
       CH-3714 Frutigen                                                                            Edition 21 30                   CH-3714 Frutigen                                                                             Edition 21 30
