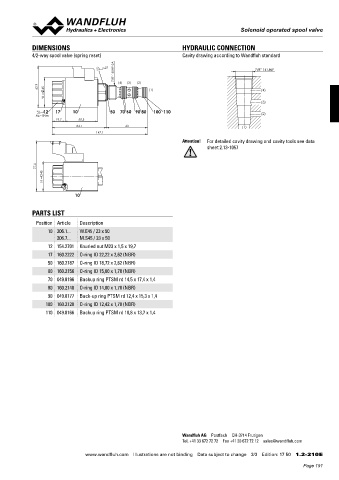

Page 191 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

DIMENSIONS HYDRAULIC CONNECTION
4/2-way spool valve (spring reset) Cavity drawing according to Wandfluh standard

7/8"-14UNF-2A
s27 7/8"-14 UNF

62.9 45 (4) (3) (2) (1) (4)
W =
(3)
12 17 10 50 70 60 90 80 100 110
MD=5Nm (2)
19.7 50.5
84.1 63 (1)
147.1
Attention! For detailed cavity drawing and cavity tools see data
sheet 2.13-1057

77.2
45
M =

10

PARTS LIST
Position Article Description
10 206.1... W.E45 / 23 x 50
206.7... M.S45 / 23 x 50
12 154.2701 Knurled nut M23 x 1,5 x 19,7
17 160.2222 O-ring ID 22,22 x 2,62 (NBR)
50 160.2187 O-ring ID 18,72 x 2,62 (NBR)
60 160.2156 O-ring ID 15,60 x 1,78 (NBR)
70 049.8196 Backup ring PTSM rd 14,5 x 17,4 x 1,4
80 160.2140 O-ring ID 14,00 x 1,78 (NBR)
90 049.8177 Back-up ring PTSM rd 12,4 x 15,3 x 1,4
100 160.2120 O-ring ID 12,42 x 1,78 (NBR)
110 049.8166 Backup ring PTSM rd 10,8 x 13,7 x 1,4

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 sales@wandfluh.com

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 17 50 1.2-210 E
