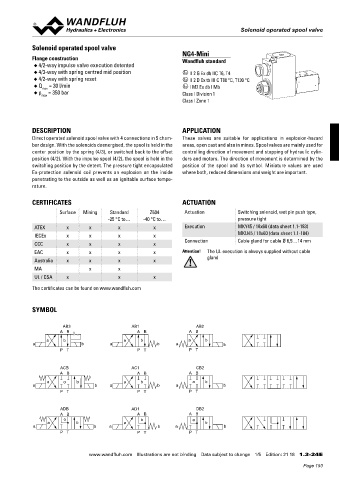

Solenoid operated spool valve
                                                                                     Solenoid operated spool valve


            Solenoid operated spool valve
                                                                 NG4-Mini
            Flange construction                                  Wandfluh standard
             ◆  4/2-way impulse valve execution detented
             ◆  4/3-way with spring centred mid position         x II 2 G Ex db IIC T6, T4
             ◆  4/2-way with spring reset                        x II 2 D Ex tb III C T80 °C, T130 °C
             ◆  Q  = 30 l/min                                    x I M2 Ex db I Mb
                max
             ◆  p  = 350 bar                                     Class I Division 1
                max
                                                                 Class I Zone 1



            DESCRIPTION                                          APPLICATION
            Direct operated solenoid spool valve with 4 connections in 5 cham-  These  valves  are  suitable  for  applications  in  explosion-hazard
            ber design. With the solenoids deenergised, the spool is held in the   areas, open cast and also in mines. Spool valves are mainly used for
            center position by the spring (4/3), or switched back to the offset   controlling direction of movement and stopping of hydraulic cylin-
            position (4/2). With the impulse spool (4/2), the spool is held in the   ders and motors. The direction of movement is determined by the
            switching position by the detent. The pressure tight encapsulated   position  of  the  spool  and  its  symbol.  Miniature  values  are  used


            Ex-protection  solenoid  coil  prevents  an  explosion  on  the  inside    where both, reduced dimensions and weight are important.
            penetrating to the outside as well as an ignitable surface tempe-

            rature.


            CERTIFICATES                                         ACTUATION
                      Surface  Mining   Standard      Z604        Actuation          Switching solenoid, wet pin push type,
                                       -25 °C to…  -40 °C to…                        pressure tight
             ATEX       x       x          x           x          Execution          MKY45 / 18x60 (data sheet 1.1-183)
             IECEx      x       x          x           x                             MKU45 / 18x60 (data sheet 1.1-184)
                                                                  Connection         Cable gland for cable Ø 6,5…14 mm
             CCC        x       x          x           x
             EAC        x       x          x           x         Attention!  The UL execution is always supplied without cable
                                                                          gland
             Australia  x       x          x           x
             MA                 x          x
             UL / CSA   x                  x           x
            The certificates can be found on www.wandfluh.com



            SYMBOL

                       AB3                     AB1                    AB2
                      A B                        A B               A B
                 a     b                    a     b                a     b
             a                b         a               b      a                b
                      P T                        P T               P T


                      ACB                      AC1                    CB2
                      A B                        A B               A B
                  a    o    b               a     b                  a   b
             a                    b     a               b      a                b
                      P T                        P T               P T


                      ADB                      AD1                    DB2
                      A B                        A B               A B
                       o                          b                  a
                  a         b               a                            b
             a                    b    a                b      a                b
                      P T                        P T               P T



                                www.wandfluh.com  Illustrations are not binding  Data subject to change  1/5  Edition: 21 18  1.3-24 E
