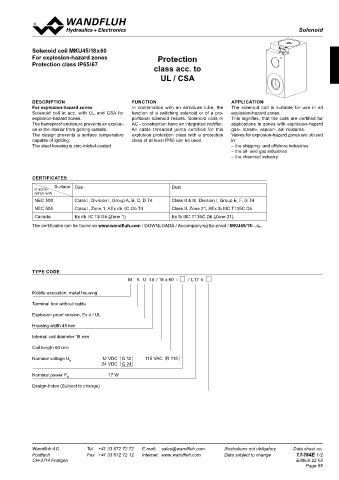

Page 85 - Softbound_Edition_19_en
P. 85

Solenoids
                                                                                                          Solenoid

            Solenoid coil MKU45/18x60
            For explosion-hazard zones                  Protection
            Protection class IP65/67
                                                       class acc. to
                                                         UL / CSA




            DESCRIPTION                        FUNCTION                           APPLICATION
            For explosion-hazard zones         In combination with an armature tube, the   The solenoid coil is suitable for use in all
            Solenoid coil in acc. with UL and CSA for   function of a switching solenoid or of a pro-  explosion-hazard zones.
            explosion-hazard zones.            portional solenoid results. Solenoid coils in   This signifies, that the coils are certified for
            The flameproof enclosure prevents an explosi-  AC - construction have an integrated rectifier.  applications in zones with explosion-hazard
            on in the interior from getting outside.   All  cable  threaded  joints  certified  for  this   gas-, steam-, vapour-, air- mixtures.
            The design prevents a surface temperature   explosion protection class with a protection   Valves for explosion-hazard zones are utilised
            capable of igniting.               class of at least IP65 can be used.  in:
            The steel housing is zinc-/nickel-coated                              – the shipping- and offshore industries
                                                                                  – the oil- and gas industries
                                                                                  – the chemical industry


            CERTIFICATES
                    Surface  Gas                             Dust
             in accor-
             dance with
             NEC 500       Class I, Division I, Group A, B, C, D T4  Class II & III, Division I, Group E, F, G T4
             NEC 505       Class I, Zone 1, AEx db IIC Gb T4  Class II, Zone 21, AEx tb IIIC T135C Db
             Canada        Ex db IIC T4 Gb (Zone 1)          Ex tb IIIC T135C Db (Zone 21)
            The certificates can be found on www.wandfluh.com / DOWNLOADS / Accompanying Ex-proof / MKU45/18-..-L..








            TYPE CODE
                                              M  K  U  45  / 18 x 60  -     / L17 #

            Mobile execution, metal housing
            Terminal box without cable
            Explosion proof version, Ex d / UL

            Housing width 45 mm
            Internal coil diameter 18 mm

            Coil length 60 mm
            Nominal voltage U        12 VDC  G 12   115 VAC  R 115
                         N
                                     24 VDC  G 24
            Nominal power P            17 W
                         N
            Design-Index (Subject to change)












            Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
            Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-184E 1/2
            CH-3714 Frutigen                                                                             Edition 22 03
