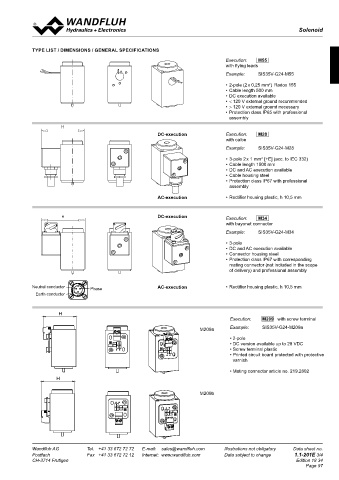

Solenoids                                                                                               Solenoids
                                                                                                          Solenoid

 TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS  TYPE LIST / DIMENSIONS / GENERAL SPECIFICATIONS
 Standard execution with DIN connector                                          Execution:    M55
 H
                                                                                with flying leads
 H                     H
 Example:   SIS35V-G24                                                          Example:    SIS35V-G24-M55
 H  •  3-pole 2 P+E                                                             • 2-pole (2 x 0,25 mm )  Radox 155
                                                                                                2
 • DC and AC execution available                                                • Cable length 500 mm
 H  • Connector socket plastic                                                  • DC execution available
 H  • Protection class IP65 with corresponding                                  • < 120 V external ground recommended
 mating connector (not included in the scope of                                 • > 120 V external ground necessary
 delivery) and professional assembly                                            • Protection class IP65 with professional
                                                                                  assembly
                       H
 H                     H
 H  Execution:    M92                                   DC-execution            Execution:    M28
 with  AMP Junior-Timer connector                                               with calbe
                    H
 H  Example:   SIS35V-G24-M92                                                   Example:    SIS35V-G24-M28
                                                                                             2
 H  • 2-pole                                                                    • 3-pole 2 x 1 mm [+E] (acc. to IEC 332)
 H  • DC execution available  H                                                 • Cable length 1500 mm
 • < 120 V external ground recommended                                          • DC and AC execution available
 • > 120 V external ground necessary                                            • Cable housing steel
 • Connector socket plastic                                                     H • Protection class IP67 with professional
 • Protection class IP65 with corresponding mating                                assembly
 H  connector (not included in the scope of delivery)
 and professional assembly  H                           AC-execution            • Rectifier housing plastic, h 10,5 mm
                    H
 H
 H  Execution:    M240                                  DC-execution
 with Deutsch connector  H                                                      Execution:    M34
                                                                                with bayonet connector
 H  Example:   SIS35V-G24-M240
 H                                                                              Example:    SIS35V-G24-M34
 • 2-pole             H
 • DC execution available                                                       • 3-pole
 • < 120 V external ground recommended                                         H • DC and AC execution available
 • > 120 V external ground necessary                                            • Connector housing steel
 • Connector socket plastic                                                     • Protection class IP67 with corresponding
 H  • Protection class IP67 and IP69K with corre-                                 mating connector (not included in the scope
 H  sponding mating connector (not included in the   H                            of delivery) and professional assembly
                       H
 scope of delivery) and professional assembly
 H                   H
            Neutral conductor    Phase                  AC-execution            • Rectifier housing plastic, h 10,5 mm
 Execution:    M47
 H            Earth conductor
 with flying leads
 H  Example:   SIS35V-G24-M47
                      H
 2
 • 2-pole (2 x 0,25 mm ) Radox 155                                                Execution:    M209   with screw terminal
 • Cable length 200 mm
 H  • DC and AC execution available                                    M209a      Example:   SIS35V-G24-M209a
 H  • < 120 V external ground recommended
 • > 120 V external ground necessary  H H                                         • 2-pole
 • Flying leads housing plastic                                                   • DC version available up to 28 VDC
 H  • Protection class IP65 with professional                                     • Screw terminal plastic
 assembly                                                                         • Printed circuit board protected with protective
 H                                                                                  varnish

 H  Execution:    M56                                                             • Mating connector article no. 219.2802
 with cable          H
 Example:   SIS35V-G24-M56
                                                                       M209b
 • 3-pole 3 x 0,75 mm  thermoplastic
 2
 • Cable length 1500 mm
 • Cable diameter 6 mm
 • DC and AC execution available
 • Cable housing plastic
 • Protection class IP67 with professional
 assembly


 Wandfluh AG   Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.   Wandfluh AG   Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
 Postfach   Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-201E 2/4   Postfach   Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-201E 3/4
 CH-3714 Frutigen                   Edition 18 34  CH-3714 Frutigen                                      Edition 18 34
