Flow control valves, pressure compensation valves , fine feed / fast approach units NG4-Mini

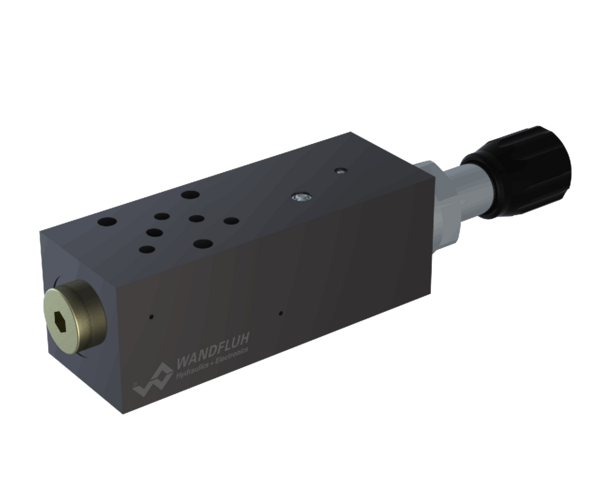

Pressure compensator valve with fixed setting in sandwich design with interface NG4-Mini acc. to Wandfluh standard with 4 ports. The steel body of the sandwich valve is phosphatized and the cartridge body is zinc coated for corrosion protection. The load is sensed in line A or B with an incorporated shuttle valve.
Pressure compensating valve
- 2-way operation
- Qmax = 10 l/min
- pmax = 315 bar
Pressure compensator sandwich valves are usually stacked underneath proportional directional valves. They are used in open loop circuits. 2-way pressure compensators may be installed in parallel pressure lines with a common power source to operate actuators individually. For each actuator the full pump pressure is available.
