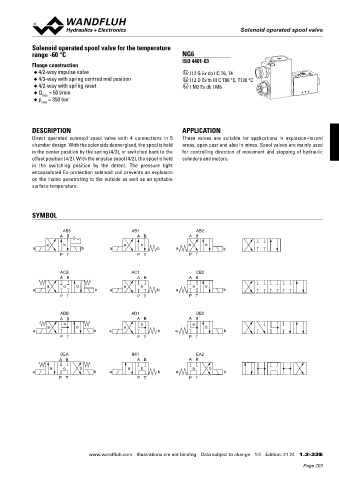

Solenoid operated spool valve
                                                                                     Solenoid operated spool valve


            Solenoid operated spool valve for the temperature
            range -60 °C                                         NG6
                                                                 ISO 4401-03
            Flange construction
             ◆  4/2-way impulse valve                            x II 2 G Ex db IIC T6, T4
             ◆  4/3-way with spring centred mid position         x II 2 D Ex tb III C T80 °C, T130 °C
             ◆  4/2-way with spring reset                        x I M2 Ex db I Mb
             ◆  Q  = 50 l/min
                max
             ◆  p  = 350 bar
                max



            DESCRIPTION                                          APPLICATION
            Direct  operated  solenoid  spool  valve  with  4  connections  in  5   These  valves  are  suitable  for  applications  in  explosion-hazard
            chamber design. With the solenoids deenergised, the spool is held   areas, open cast and also in mines. Spool valves are mainly used
            in the center position by the spring (4/3), or switched back to the   for  controlling  direction  of  movement  and  stopping  of  hydraulic


            offset position (4/2). With the impulse spool (4/2), the spool is held   cylinders and motors.


            in  the  switching  position  by  the  detent.  The  pressure  tight
              encapsulated Ex-protection solenoid coil prevents an explosion
            on the inside penetrating to the outside as well as an ignitable



            surface temperature.

            SYMBOL

                       AB3                     AB1                    AB2
                      A B                        A B               A B
                 a     b                    a     b                a     b
             a                b         a               b      a                b
                      P T                        P T               P T


                      ACB                      AC1                    CB2
                      A B                        A B               A B
                  a    o    b               a     b                  a   b
             a                    b     a               b      a                b
                      P T                        P T               P T


                      ADB                      AD1                    DB2
                      A B                        A B               A B
                       o                          b                  a
                  a         b               a                            b
             a                    b    a                b      a                b
                      P T                        P T               P T


                      BEA                      BE1                    EA2
                      A B                        A B               A B
                   a   o     b                a   b                  a    b
            a                     b     a               b      a                b
                      P T                        P T               P T















                                www.wandfluh.com  Illustrations are not binding  Data subject to change  1/4  Edition: 21 24  1.3-33 E
