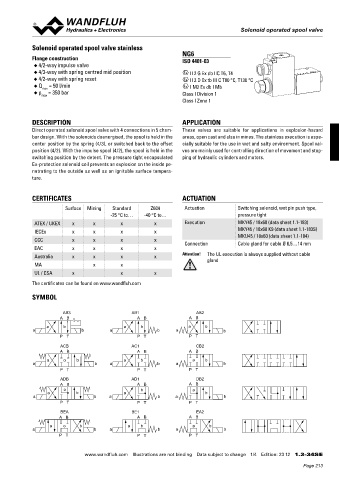

Page 213 - Softbound_Edition_19_en

Solenoid operated spool valve
Solenoid operated spool valve

Solenoid operated spool valve stainless
NG6
Flange construction ISO 4401-03
◆ 4/2-way impulse valve
◆ 4/3-way with spring centred mid position x II 2 G Ex db IIC T6, T4
◆ 4/2-way with spring reset x II 2 D Ex tb III C T80 °C, T130 °C
◆ Q = 50 l/min x I M2 Ex db I Mb
max
◆ p = 350 bar Class I Division 1
max
Class I Zone 1

DESCRIPTION APPLICATION
Direct operated solenoid spool valve with 4 connections in 5 cham- These valves are suitable for applications in explosion-hazard
ber design. With the solenoids deenergised, the spool is held in the areas, open cast and also in mines.The stainless execution is espe-

center position by the spring (4/3), or switched back to the offset cially suitable for the use in wet and salty environment. Spool val-
position (4/2). With the impulse spool (4/2), the spool is held in the ves are mainly used for controlling direction of movement and stop-
switching position by the detent. The pressure tight encapsulated ping of hydraulic cylinders and motors.

Ex-protection solenoid coil prevents an explosion on the inside pe-
netrating to the outside as well as an ignitable surface tempera-

ture.

CERTIFICATES ACTUATION
Surface Mining Standard Z604 Actuation Switching solenoid, wet pin push type,
-25 °C to… -40 °C to… pressure tight
ATEX / UKEX x x x x Execution MKY45 / 18x60 (data sheet 1.1-183)
IECEx x x x x MKY45 / 18x60 K9 (data sheet 1.1-183S)
MKU45 / 18x60 (data sheet 1.1-184)
CCC x x x x Connection Cable gland for cable Ø 6,5…14 mm
EAC x x x x
Australia x x x x Attention! The UL execution is always supplied without cable
gland
MA x x
UL / CSA x x x
The certificates can be found on www.wandfluh.com

SYMBOL

AB3 AB1 AB2
A B A B A B
a b a b a b
a b a b a b
P T P T P T

ACB AC1 CB2
A B A B A B
a o b a b a b
a b a b a b
P T P T P T

ADB AD1 DB2
A B A B A B
o b a
a b a b
a b a b a b
P T P T P T

BEA BE1 EA2
A B A B A B
a o b a b a b
a b a b a b
P T P T P T

www.wandfluh.com Illustrations are not binding Data subject to change 1/4 Edition: 23 12 1.3-34S E
