Proportional pressure reducing cartridge pilot operated explosion proof Ex d II C MVBPM22

Proportional pressure relief valves, proportional pressure reducing valves M22x1,5

Pilot operated proportional pressure reducing valve in screw-in cartridge construction for cavity according to ISO 7789. Proportionally to the solenoid current, the solenoid force and the pressure in port A (1) rise. The valve functions practically independently of the pressure in port P (2). Pressure increase in the consumer port A (1) to above the adjusted value, e.g. through an active consumer, is avoided by discharging excess oil to the tank T (3). With the solenoid deenergised, the oil flows freely from port P (2) to consumer port A (1). For the control, Wandfluh proportional amplifiers are available (see register 1.13). The pressure tight encapsulated Ex-protection solenoid coil prevents an explosion on the inside penetrating to the outside as well as an ignitable surface tempe­rature. ​ ​

Proportional valves Proportional pressure reducing cartridge pilot operated explosion proof Ex d II C MVBPM22

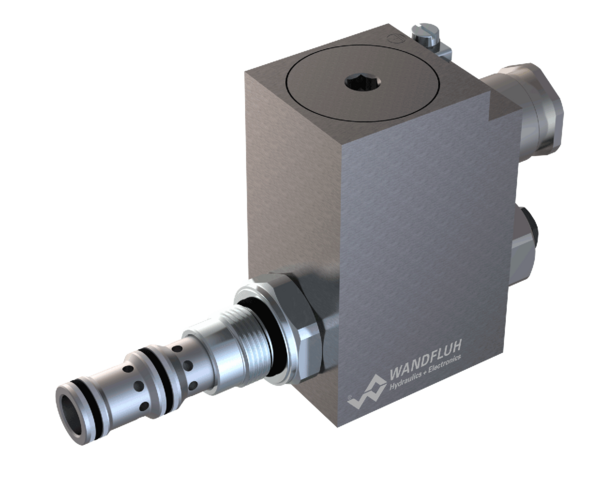

Proportional pressure reducing cartridge​

  • pilot operated
  • Qmax = 60 l/min
  • pmax = 400 bar
  • pN red max = 350 bar

Application

These valves are suitable for applications in explosion-hazard areas, open cast and also in mines. The electrical remote control in conjunction with process controls allows economical solutions with repeatable processes. The screw-in cartridge is perfectly suitable for installation in control blocks and is installed in sandwich- (vertical stacked systems) and in flange plates (corresponding data sheets in this register). For machining the cartridge cavity in steel and aluminum blocks, cavity tools are available (hire or purchase). Please refer to the data sheets in register 2.13. ​ ​ ​
